ECO-10Copper Oxide (Electro-plating Grade)

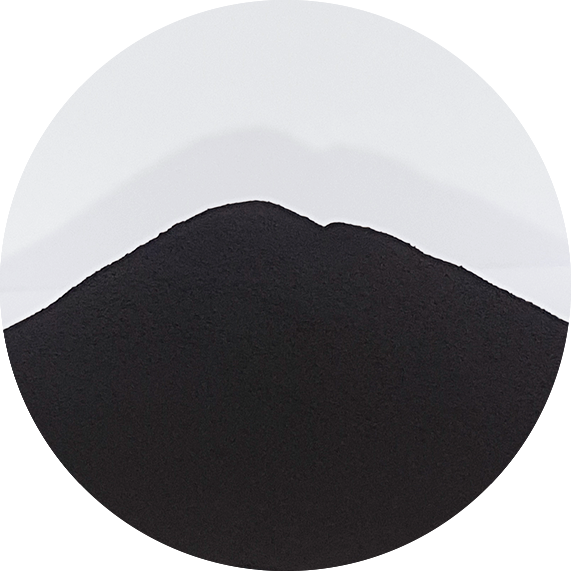

Copper Oxide, Electro-plating Grade(ECO-10) appears in Black Powder form and is used for the plating of Printed Circuit Board(PCB) and Catalysis, ECO-10 has rapid dissolution rate(within 10 sec.), low CI content(below 10ppm), low impurities, and superior flowability through our own patent, so it is very suitable for Electroless-plating or Electro-plating.
| Item | Unit | Specification | Typical |
|---|---|---|---|
| Copper Oxide (CuO) | % | Min 98.5 | 99.1 |
| Chloride(Cl) | % | Max 0.001 | 0.0007 |
| Moisture | % | Max 1.0 | 0.4 |
| Dissolution Rate in Acid | sec | Max 10 | 8 |
Specification : Adjustable upon request

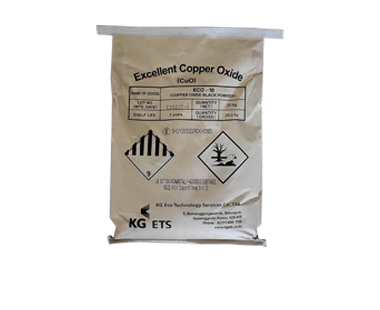

25KG PAPER BAG

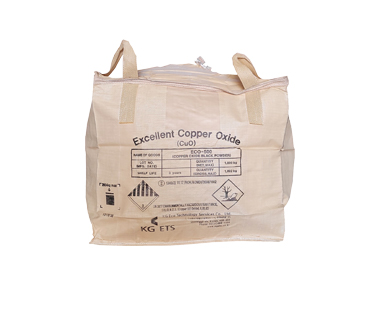

1 TON JUMBO BAG

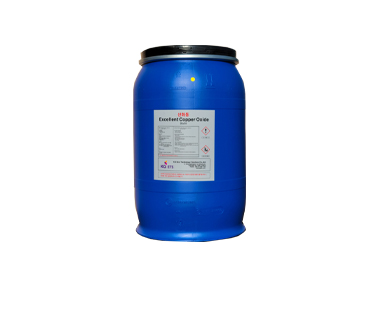

250KG PE DRUM
Packaging Unit : Adjustable upon request
